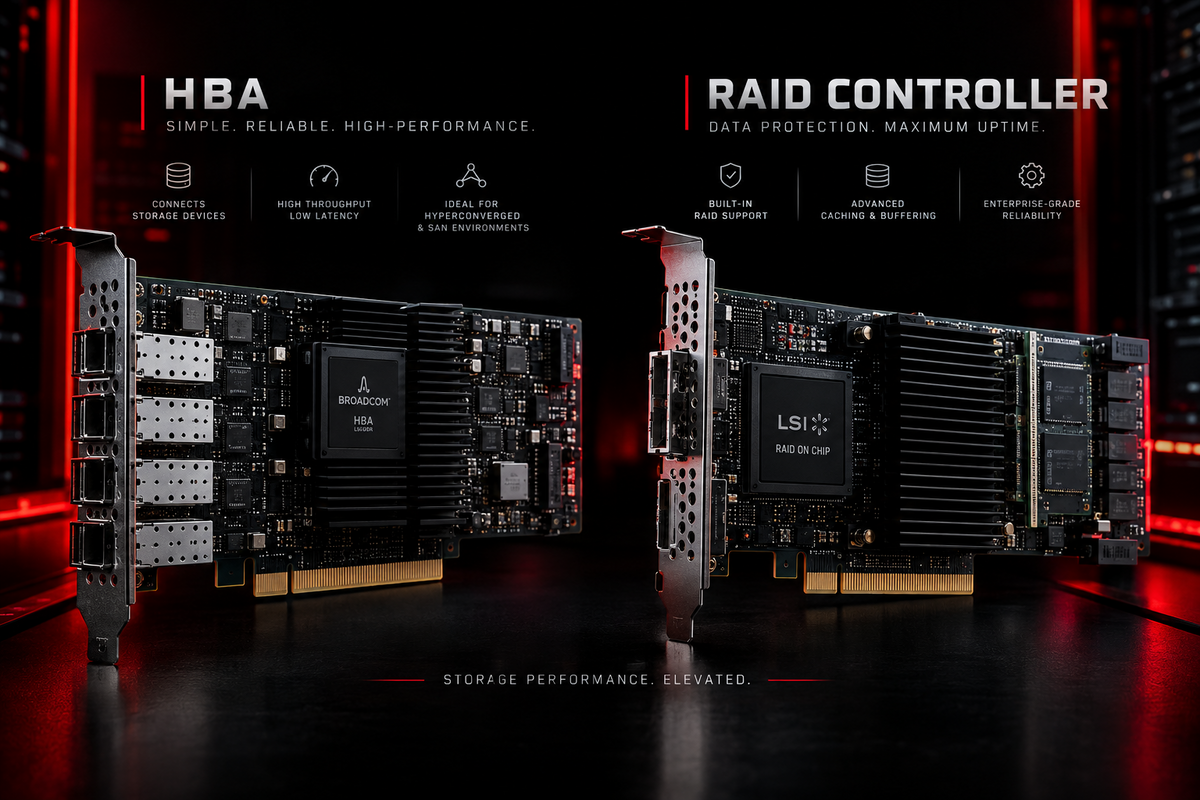

HBA vs RAID Controller: Which Do You Need?

Why This Choice Matters

Every server with multiple drives needs something to connect them to the system. That something is usually a Host Bus Adapter (HBA) or a RAID controller. They look almost identical on the outside, but they behave very differently. Choosing the wrong one can limit performance, complicate management, or leave your data unprotected.

What Is an HBA?

An HBA is a simple controller that passes drives straight through to the operating system. It does no RAID processing itself. The OS or storage software sees each drive individually and manages them directly.

Key traits:

• Drives appear as individual disks (JBOD, "just a bunch of disks")
• No hardware RAID processing
• Lower cost
• Minimal latency, since data goes directly to the OS
• Works with software-defined storage

What Is a RAID Controller?

A RAID controller combines multiple drives into arrays (RAID 0, 1, 5, 6, 10, and so on) at the hardware level. The OS sees the array as a single logical volume, and the controller handles redundancy, striping, and rebuilds.

Key traits:

• Hardware-based RAID processing
• Onboard processor and cache memory
• Optional battery or flash-backed cache protection
• Built-in management tools and alerts
• Higher cost

HBA vs RAID Controller: Side-by-Side

Performance

HBAs provide direct, low-latency access to each drive. With fast NVMe or SSD arrays, this avoids the controller becoming a bottleneck.

RAID controllers use onboard cache and a dedicated processor to accelerate writes and handle parity calculations. This helps with mixed workloads on hard drives, especially RAID 5 and RAID 6, where parity math is heavy.

On modern all-flash systems, the controller processor can become a bottleneck, which is one reason HBAs and software RAID are popular with SSD pools.

Data Protection and Redundancy

• RAID controller: Handles redundancy in hardware. If a drive fails, the controller can rebuild automatically, often with hot spares. Cache protection (battery or flash) helps prevent data loss during power failures.
• HBA: Provides no protection on its own. Redundancy depends entirely on your software layer, such as ZFS, Windows Storage Spaces, or Ceph.

Neither option replaces backups. RAID protects against drive failure, not against deletion, corruption, or ransomware.

Management and Monitoring

RAID controllers come with dedicated management utilities and firmware that report array health, rebuild status, and alerts. HBAs give the OS direct access to drive data such as SMART health, which software-defined storage relies on to detect failing drives early.

IT Mode vs IR Mode

Many controllers can run in two firmware modes:

• IT mode (Initiator-Target): Acts as a pure HBA, passing drives directly to the OS.
• IR mode (Integrated RAID): Provides basic hardware RAID features.

A RAID controller flashed to IT mode behaves like an HBA. This is common in ZFS and homelab builds, but it can affect warranty and support, so check with your vendor.

Which Should You Choose?

Choose an HBA if:

• You run ZFS, Ceph, or another software-defined storage platform
• You want direct drive access and full SMART visibility
• You use all-flash or NVMe pools
• You want to reduce cost and avoid controller lock-in

Choose a RAID controller if:

• You need hardware RAID for boot drives or general-purpose servers
• You run Windows or VMware with traditional RAID arrays
• You want cache acceleration and battery-backed write protection
• You prefer simple array management without configuring software

Controller Lock-In Risk

Hardware RAID arrays are often tied to the controller brand and sometimes the specific model. If the controller fails, you may need an identical or compatible replacement to access your data. Software RAID with an HBA avoids this risk, since arrays can usually be imported on different hardware.

Common Mistakes to Avoid

• Using a hardware RAID controller with ZFS in RAID mode (it hides drives from ZFS)
• Buying an HBA and expecting hardware RAID features
• Skipping cache battery or flash protection on RAID controllers
• Running RAID 5 on very large hard drives, where rebuilds take a long time
• Treating RAID as a backup
• Ignoring firmware updates on the controller
• Buying from unverified sellers without warranty or part number details

Final Thoughts

An HBA offers simplicity, speed, and flexibility for software-defined storage. A RAID controller offers hardware-level protection, caching, and easy management for traditional server setups. Match the controller to your storage software, drive type, and protection needs, and you'll get a storage system that is fast, reliable, and easy to maintain.

FAQ

What is the main difference between an HBA and a RAID controller?
An HBA passes drives directly to the OS, while a RAID controller combines drives into arrays at the hardware level.

Can I use a RAID controller as an HBA?
Many can, by switching to IT mode or JBOD mode, but support varies by model and vendor.

Which is better for ZFS?
An HBA. ZFS needs direct access to drives to manage them properly.

Does an HBA provide RAID?
No. Any RAID must be handled by software.

Is hardware RAID faster than software RAID?
Not always. Hardware RAID helps with parity workloads on hard drives, but software RAID with HBAs often performs very well with SSDs.

What happens if a RAID controller fails?
You may need the same or a compatible controller to recover the array, so keep backups.

Do I still need backups with RAID?
Yes. RAID protects against drive failure only, not against deletion, corruption, or ransomware.

Are HBAs cheaper than RAID controllers?
Generally yes, since they have no onboard RAID processor or cache.

Can I boot from an HBA?
Often yes, but many setups use a RAID controller or a separate boot drive for reliable boot volumes.
