Most people spend hours comparing CPUs and memory, then pick the power supply last. That is a mistake. A power supply that is too small will cause random shutdowns. One that is too big wastes money every month on electricity. And a server with no redundancy can go dark because of one failed part that costs less than a nice dinner.
This guide covers the three things that matter most: how much wattage you need, what efficiency rating is worth paying for, and how redundancy works.
What a server power supply actually does
A server power supply takes AC power from the wall and turns it into the DC voltages your components use. It feeds the motherboard, CPUs, memory, drives, fans, and any add-in cards like GPUs or network adapters.

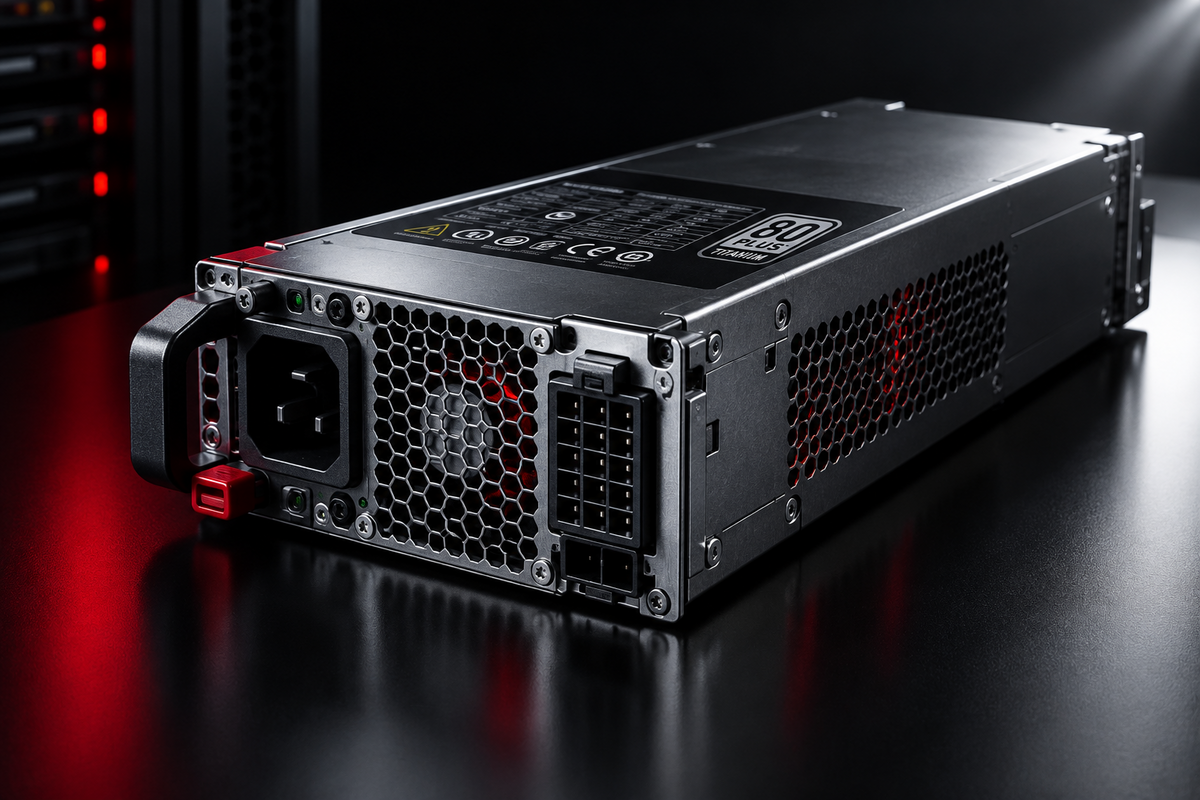

Unlike a desktop PC supply, a server unit is built to run all day, every day, often at steady load. Most are compact modules that slide into the back of the chassis. Many support hot-swapping, which means you can pull out a bad unit and put in a new one while the server keeps running.
Step 1: Work out how much wattage you need
Start by adding up what your components can draw. Do not use the average. Use the peak.
| Component | What to check |
|---|---|
| CPU | The rated TDP, or the max power listed in the spec sheet |
| Memory | Roughly 5 to 10W per module, depending on capacity and speed |
| Storage | Spin-up draw for hard drives, active draw for SSDs |
| Fans | Several fans at high speed can add up to a surprising amount |
| Add-in cards | GPUs, RAID controllers, and network cards, each with their own rating |
| Motherboard and other parts | Usually 30 to 80W for the board, management controller, and so on |
Add everything together, then add 20 to 30 percent as headroom. That buffer covers power spikes, future upgrades, and the fact that a power supply is usually most efficient around the middle of its load range, not at the maximum.
Here is a simple example. Say your two CPUs are 270W each, memory and storage come to 150W, fans are 60W, and the board and extras are 80W. That totals 830W. With 25 percent headroom you land near 1,040W, so a 1,100W or 1,200W unit would be a sensible pick.
Do not oversize by a huge amount, though. A 2,400W supply running a 400W server will work, but it will usually sit in an inefficient part of its curve.
Step 2: Understand 80 PLUS efficiency ratings
The 80 PLUS program tests how much of the power a supply pulls from the wall actually reaches your components. The rest turns into heat. Higher ratings waste less power and produce less heat, which also lowers your cooling load.
| Rating | Efficiency at 50% load (115V) | Typical use |
|---|---|---|
| Bronze | 85% | Budget builds, light-duty servers |
| Silver | 88% | Small business servers |
| Gold | 90% | The most common choice for general use |
| Platinum | 92% | Always-on servers, larger deployments |
| Titanium | 94% | Dense racks, high power costs |
The gap between Gold and Platinum looks small, but it adds up. Think about a server drawing 800W around the clock. A 2 percent efficiency difference is a modest saving per server. Across a rack of twenty servers over several years, it becomes real money, and it also means less heat for your cooling system to remove.
For one or two servers in a small office, Gold is usually the sweet spot. For a rack or a data center, Platinum or Titanium often pays for itself.
Keep in mind that efficiency numbers change with input voltage. Supplies run a little more efficiently on 208V to 240V than on 110V to 120V. If your facility offers higher voltage, use it.
Step 3: Decide on a redundancy setup
Redundancy means having more than one power supply, so the server survives if one fails. This is the single biggest factor in uptime.
| Setup | How it works | Best for |
|---|---|---|
| Single PSU | One unit carries the full load | Test machines, non-critical workloads |
| 1+1 redundant | Two units, each able to carry the full load alone | Most production servers |
| N+1 | Several units share the load, with one spare | Larger systems with high power needs |
| 2N | Two completely separate power paths | Mission-critical systems |
In a 1+1 setup, both units normally share the load. If one dies, the other takes over with no interruption. Each unit must be rated high enough to run the whole server by itself. This is where people get tripped up. If your server needs 1,000W, then two 600W units in 1+1 will not protect you, because one 600W unit cannot carry the load alone.
Redundancy is only as good as what sits behind it. Plug each power supply into a different power distribution unit, and ideally onto a different circuit. If both cords go into the same power strip, one tripped breaker takes out both and the redundancy did nothing.
Other things to check before you buy
Form factor and compatibility. Server supplies are not universal. Check that the unit matches your chassis and the model your server vendor supports. Many modern servers use common redundant form factors, but the connectors and fit still need to match.
Airflow direction. Supplies are built to move air front to back or back to front. It must match the airflow direction of the rest of your server. A mismatched unit fights the other fans and can cause overheating.
Hot-swap support. If uptime matters, make sure the unit can be replaced without shutting down.
Matching units. In a redundant pair, use two identical supplies. Mixing wattages or models can cause load sharing problems or warning lights.
Warranty and source. Power supplies fail in more dramatic ways than most parts, so buy from a seller who offers a clear warranty. This is also where the new versus refurbished question comes up. A refurbished unit can be fine for a backup spare or a non-critical machine, but for your main production server, many buyers prefer new.
Common mistakes and how to fix them
| Mistake | What happens | Fix |
|---|---|---|
| Sizing wattage to average draw | Random reboots under load | Size to peak draw plus 20 to 30 percent |
| Two weak PSUs in 1+1 | Server crashes when one fails | Make sure each unit can carry the whole load |
| Both cords on one circuit | One breaker outage takes down the server | Use separate PDUs and circuits |
| Mismatched airflow direction | Heat builds up, fans run loud | Match the unit to the chassis airflow |
| Mixing different PSU models | Warning lights or uneven load sharing | Use identical units in a pair |
| Ignoring upgrade plans | Add a GPU later and run out of power | Plan for future cards when picking wattage |
| Buying the cheapest unit | Early failure and higher heat | Pick a reputable model with a real warranty |
What to do when a power supply fails
If your server throws a power supply fault, do not panic, and do not just keep running. First, check the status light on the unit and the log in your server's management interface. That usually tells you which supply has the problem.
If you have redundancy, the server is still running, but you are now one failure away from an outage. Replace the bad unit as soon as you can. Having a matching spare on a shelf turns a stressful emergency into a five-minute job.
If you have a single supply, a fault usually means a shutdown. Check the power cord and outlet first, since a loose cable or bad strip is more common than a dead unit.
Putting it together
Pick your wattage based on peak draw with headroom. Choose an efficiency rating that fits how many servers you run and how long they stay on. Then match your redundancy to how much downtime you can tolerate. For many businesses, that means Gold or Platinum units in a 1+1 setup, each on its own circuit.
It is not the exciting part of a server build, but a well-chosen power supply is what keeps everything else running.
FAQ
How much wattage does a typical server need?
It depends heavily on the build. A basic single-CPU server may need 400 to 600W, while a dual-CPU server with lots of memory and drives can need 1,000W or more. Add up your component peaks and add 20 to 30 percent.
Is a higher efficiency rating always worth it?
Not always. For one small server, Gold is usually enough. Platinum and Titanium make more sense when you run many servers or pay high electricity and cooling costs.
Can I use a desktop power supply in a server?
Generally no. Most servers need a specific supply that fits the chassis and connects to the server's power backplane. Desktop units are not built for continuous operation or hot-swapping.
What does 1+1 redundancy mean?
It means two power supplies, where either one can run the whole server alone. If one fails, the other keeps everything running without a shutdown.
Do both power supplies run at the same time?
In most redundant setups, yes. They share the load, and if one fails the other takes it all.
Can I replace a power supply while the server is running?
Only if the supply is hot-swap capable and the server supports it. Check your server documentation before pulling a unit.
Should I buy a refurbished power supply?
It can work well as a spare or for lower-risk systems. For your main production server, many buyers prefer new units for the longer warranty and peace of mind.
Why does my server beep or show a power supply warning?
It usually means one unit has failed, lost input power, or is overheating. Check the status light and the management log, then inspect the power cord and circuit before replacing the unit.
